The 2026 Toyota RAV4 is sold in two cooling contexts: the 2.0L M20A naturally-aspirated petrol with a conventional radiator and mechanical cooling fan, and the 2.0L/2.5L hybrid variants with a closed-loop battery cooling circuit, an inverter cooling radiator, and a higher-spec electric cooling fan assembly. Wholesale distributors stocking RAV4 parts from Guangzhou need to plan for both — and that planning starts with the OE references.
This guide is written for parts distributors, fleet suppliers and workshop chains sourcing Toyota RAV4 cooling and engine parts from China. It covers the cooling system (radiator, condenser, cooling fan, intercooler on AWD variants), engine accessories (alternator, starter, timing chain, water pump), hybrid-specific parts (inverter, converter, MG1/MG2, battery cooling plate), the OE number map for the 2026 programme, FOB Guangzhou pricing by tier, IATF 16949 certification, container loading and pre-shipment QC. For the broader Toyota programme covering Corolla, Camry and RAV4, see our Corolla family wholesale guide and our RAV4 2026 vehicle export guide.
01 Why the RAV4 Anchors a Toyota Parts Wholesale Programme
The RAV4 is the highest-volume Toyota compact crossover in the global aftermarket, which means the cooling and engine parts programme is the largest single category of Toyota-branded parts moving through Guangzhou on any given week. Three reasons reinforce that anchor position. First, the installed base: the RAV4 has been a top-three global SUV since 2017 and the typical owner keeps the vehicle for 8-10 years, which generates a deep replacement cycle on cooling system parts (radiators, condensers, cooling fans) and engine accessories (alternators, starters, water pumps). Second, the technical accessibility: cooling and engine parts sit in the category band where independent workshops and even owner-mechanics can perform the replacement, which multiplies the channel beyond the dealer network. Third, the OE cross-reference stability: the RAV4's OE structure on cooling and engine parts has been remarkably stable across the XA40 (2013-2018), XA50 (2019-2024) and the current 2026 facelift, which means a parts programme built around one generation can cover two with minor additions.
The other reason RAV4 cooling and engine parts anchor a programme is that they are not commoditised in the same way that brake pads or filters are. A faulty radiator or a failed inverter sends the vehicle straight back to the workshop; the buyer does not tolerate "near enough" because the failure mode is overheating, hybrid system fault, or a battery that drops out of its operating temperature window. That reliability requirement pushes the buying decision toward the OEM-grade tier, with its corresponding higher margins and longer reorder cycles.
02 The RAV4 2026 Cooling System: Three Radiators, One Fan
The 2026 RAV4 cooling system architecture varies by powertrain, and the variation matters at the parts counter. The 2.0L M20A petrol carries a single cooling radiator, an AC condenser mounted in front of it, and a mechanical / electric cooling fan assembly. The 2.0L hybrid (THS-II) carries the same primary radiator plus an inverter cooling radiator in the lower front grille area. The 2.5L Dual Engine hybrid (the 2026 addition) carries a third configuration: a larger battery cooling plate with its own low-temperature loop and an additional cooling fan assembly on the rear underbody.
| Variant | Primary Radiator | AC Condenser | Inverter Cooling | Battery Cooling Plate | Cooling Fan Assembly |
|---|---|---|---|---|---|
| 2.0L M20A petrol | Standard OE-series | Standard OE-series | — | — | Electric, single |
| 2.0L THS-II hybrid | Standard OE-series | Standard OE-series | Yes (lower grille) | — | Electric, dual-speed |
| 2.5L Dual Engine hybrid | Reinforced OE-series | Standard OE-series | Yes (larger) | Yes (low-temp loop) | Electric, triple-zone |
| 2.5L Dual Engine 4WD | Reinforced + intercooler | Standard OE-series | Yes | Yes | Electric, triple-zone + rear fan |
The AWD variants carry an additional intercooler loop on the rear electric drive unit — this is the most distinctive cooling difference for the 2026 programme. A distributor quoting RAV4 2026 stock should confirm the drive configuration (2WD versus 4WD) at the parts order stage, because the intercooler assembly is not interchangeable between the two and is one of the higher-priced cooling parts on the bill of materials.
03 RAV4 Engine Accessories: Alternator, Starter, Water Pump, Timing Chain
The non-cooling engine accessories follow a more conventional map. The 2.0L M20A petrol carries a 12V alternator (rated roughly 100-130A depending on trim), a starter motor, a timing chain (not a belt) and a mechanical water pump driven by the timing chain. The 2.0L THS-II hybrid runs the same engine but substitutes the starter function for the MG1 motor-generator — meaning there is no conventional starter motor on the hybrid; instead, MG1 (the smaller of the two motor-generators in the THS planetary gear set) handles engine start. The 2.5L Dual Engine hybrid carries the same architecture but with a higher-output MG2 and an upgraded 12V auxiliary battery charger module.
| Part | 2.0L Petrol Application | 2.0L Hybrid Application | 2.5L Dual Engine Application |
|---|---|---|---|
| Alternator | 12V, 100-130A · OE-series | 12V, 100-130A · OE-series | 12V, 130-150A · higher-output |
| Starter motor | Conventional starter · OE-series | MG1 replaces starter function | MG1 replaces starter function |
| Timing chain kit | Standard chain kit · OE-series | Standard chain kit · OE-series | Reinforced chain kit · OE-series |
| Water pump | Mechanical, chain-driven | Mechanical, chain-driven | Mechanical, chain-driven (higher flow) |
| MG2 motor-generator | — | Hybrid-specific · service-only | Higher-output MG2 |
Three operational notes. First, the alternator on the 2.5L Dual Engine carries a higher amperage rating because it supplies the larger hybrid battery pack — a 100A alternator from the 2.0L programme will not run the 2.5L Dual Engine reliably, particularly under continuous accessory load (air conditioning, lighting, infotainment) at idle. Second, the timing chain is not a service interval item in the same way a timing belt is, but it does wear, and a noisy timing chain at cold start is the field symptom that drives the replacement. Third, the water pump is mechanically driven and is typically replaced as part of the timing chain service, not as a stand-alone part — distributors quoting either should bundle them.
04 Hybrid-Specific Parts: Inverter, Converter, MG1, MG2 and Battery Cooling

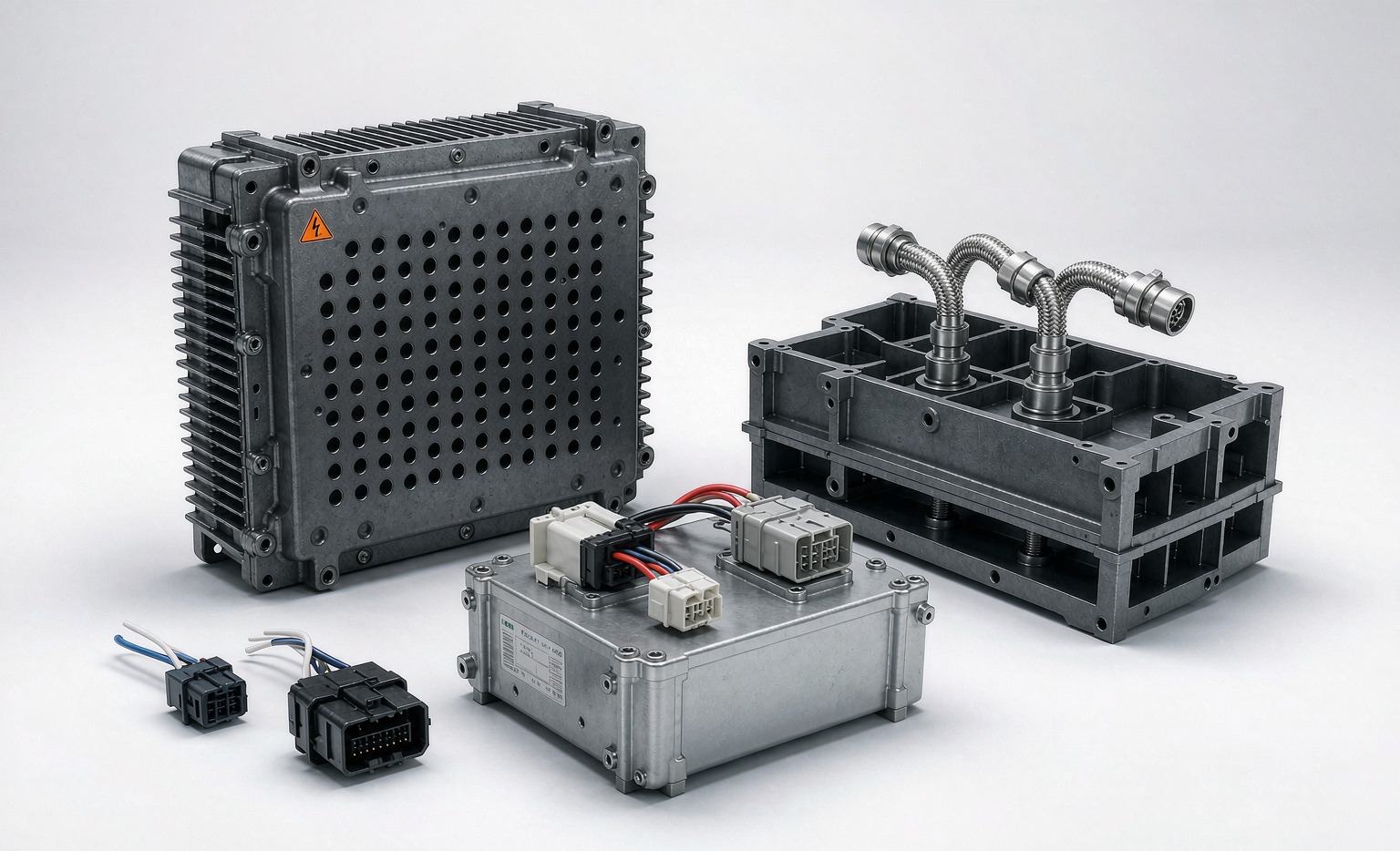

The hybrid-specific parts are the high-value category on the RAV4 2026 parts bill. The THS-II architecture puts five components on the bench that are unique to the hybrid variants: the inverter (which converts DC from the battery to AC for MG1/MG2 and vice versa), the DC-DC converter (which steps down the high-voltage hybrid battery to 12V for the auxiliary systems), MG1 (the smaller motor-generator that handles engine start and balance), MG2 (the larger motor-generator that provides propulsion assist), and the battery cooling plate (which manages the lithium-ion pack's operating temperature). Each of these carries an indicative OE reference that should be cross-checked against the latest Toyota EPC at quote stage.
| Hybrid Part | Function | Indicative OE Reference | FOB Guangzhou Range |
|---|---|---|---|
| Inverter assembly (2.0L THS-II) | DC ↔ AC conversion for MG1/MG2 | G9200-XXXXX series · confirm by ECU PN | USD 220-380 |
| Inverter assembly (2.5L Dual Engine) | DC ↔ AC conversion, higher-output | G9200-XXXXX series · confirm by ECU PN | USD 280-480 |
| DC-DC converter | High-voltage to 12V step-down | 88100-XXXXX series · confirm by ECU PN | USD 95-180 |
| MG1 motor-generator | Engine start, balance | 19100-XXXXX series · service-only | USD 350-650 |
| MG2 motor-generator | Propulsion assist, regeneration | 19200-XXXXX series · service-only | USD 380-720 |
| Battery cooling plate | Lithium pack thermal management | G92A0-XXXXX series · confirm by pack | USD 65-140 |
Two things to read from the table. First, the OE references are indicative — they must be confirmed against the current Toyota EPC at quote stage because Toyota splits references by ECU part number and by production month, and a "2026 RAV4 hybrid inverter" can carry three different G9200-series numbers depending on whether it is the 2.0L or 2.5L variant and which market it was built for. Second, the FOB Guangzhou ranges above reflect the OEM-grade tier with IATF 16949 documentation; the economical aftermarket tier (functional but without OE-grade testing) typically runs 40-60% lower, while the genuine Toyota tier runs 50-80% higher. For a distributor building a hybrid parts programme, the OEM-grade tier is where the long-term warranty story lives.
05 FOB Guangzhou Price Ladder for RAV4 Cooling and Engine Parts
Cooling and engine parts pricing from China tiers cleanly with certification level, packaging and testing documentation. The figures below are indicative FOB Guangzhou ranges for the three-tier structure most factories quote. Treat them as planning numbers for a wholesale programme, not as a quotation.
| Part Category | Economical Tier | OEM-Grade Tier | Premium / Private Label |
|---|---|---|---|
| Radiator assembly (2.0L petrol) | USD 18-28 | USD 32-48 | USD 55-75 |
| Radiator assembly (hybrid) | USD 28-42 | USD 48-72 | USD 80-110 |
| AC condenser | USD 22-35 | USD 38-58 | USD 65-90 |
| Cooling fan assembly | USD 28-45 | USD 50-80 | USD 90-130 |
| Alternator | USD 35-55 | USD 60-95 | USD 110-160 |
| Starter motor (2.0L petrol only) | USD 30-50 | USD 55-85 | USD 95-140 |
| Timing chain kit | USD 45-70 | USD 75-115 | USD 130-180 |
| Water pump | USD 18-28 | USD 32-48 | USD 55-80 |
| Hybrid inverter | — | USD 220-480 | USD 500-780 |
| MG1 / MG2 motor-generator | — | USD 350-720 | Service-only, OEM-grade typically |
Note what drives the jump between tiers. For the cooling parts (radiator, condenser, cooling fan), the premium is driven by aluminium core construction versus aluminium-plastic, by brazed versus mechanical assembly, and by pressure testing documentation. For the engine accessories (alternator, starter, water pump), the premium is driven by copper-wound stator quality, bearing grade, and impeller material. For the hybrid parts (inverter, MG1/MG2), there is essentially no economical tier in current production — the OEM-grade tier is the wholesale entry point, and even there the supply chain is tight because the Toyota tier is more closely held than the cooling tier.
06 Certification: IATF 16949 and What It Actually Means
The single most important certification question for cooling and engine parts from China is whether the factory holds IATF 16949 (the global automotive quality management standard, successor to ISO/TS 16949). IATF 16949 certification means the factory has documented process control, batch traceability, corrective action procedures and customer-specific requirement flows audited to the automotive standard. For cooling and engine parts — where a failure creates a roadside safety event, an engine bay fire, or a hybrid system fault — IATF 16949 is the floor below which a parts programme cannot safely drop.
Ask for the certificate number, not just the claim. The IATF database is publicly searchable at iatfglobaloversight.org, and a current certificate with the right scope (cooling system components, electrical/electronic components, or similar) is verifiable in five minutes. A factory that hesitates to share the certificate number, or that offers a "we are applying for IATF" line, is not in the OEM-grade tier and should not be quoted at OEM-grade prices.
For the hybrid-specific parts (inverter, converter, MG1/MG2, battery cooling plate), additional certification matters: ECE R100 for high-voltage components in European markets, ISO 26262 functional safety alignment for the inverter control software, and UN 38.3 for any battery-adjacent component that ships with lithium content. Document the certification against the destination market's regulatory framework at quote stage, because the same part number may carry different certification for Russia, the GCC and Latin America.
07 Container Loading and Pre-Shipment QC

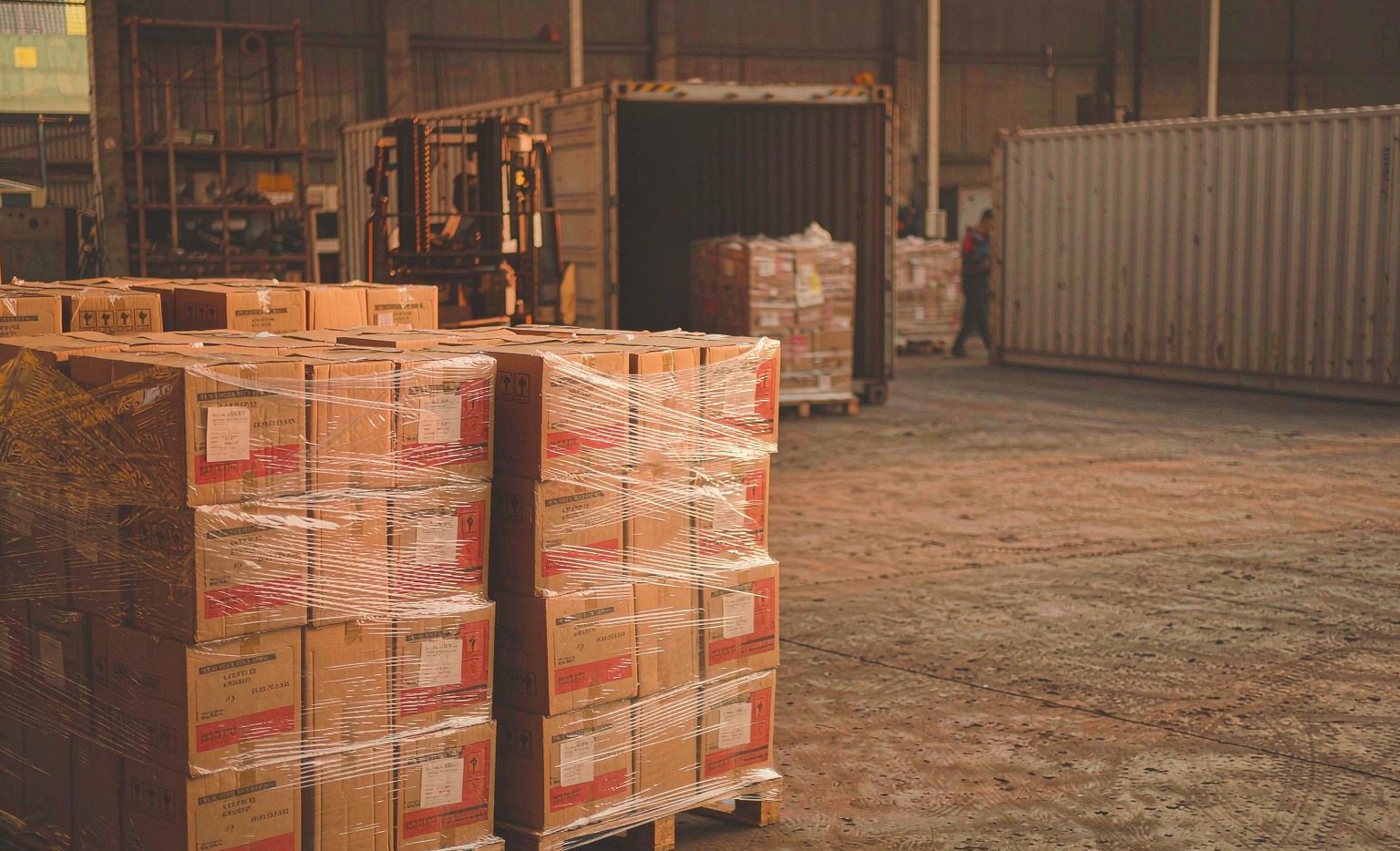

Cooling and engine parts are denser and heavier than typical aftermarket parts, so freight arithmetic matters. A 40HC container of mixed cooling parts maxes out on volume before it maxes out on weight (roughly 4,000-6,000 radiator assemblies depending on packaging), while a pure inverter shipment maxes out on value per cubic metre. Practical loading: pair cooling parts with hybrid parts in the same container to balance volume and weight; palletise with stack-strength cartons and shrink-wrap; use VCI bags inside boxes for the metal-heavy cooling parts to prevent corrosion in ocean transit.
Pre-shipment QC for cooling and engine parts should run an application-specific checklist. For radiators: pressure test on a sample basis, verify brazed joint integrity, check core dimensions against the OE drawing, and confirm mounting bracket orientation matches the application. For condensers: parallel checks on core integrity, parallel-flow versus serpentine architecture match, and receiver drier / pressure port alignment. For alternators: load test at rated amperage, voltage regulator calibration check, and bearing inspection. For hybrid inverters: high-voltage isolation test, control module communication check, and thermal cycling under load. None of these tests is exotic; the point is that they happen on your order, with your report, before the container is sealed. Third-party inspection agencies can execute the checklist at most Chinese parts factories for a standard man-day fee.
08 OE Reference Map: Where to Verify the Numbers
The OE references that anchor the RAV4 2026 cooling and engine parts programme follow the Toyota convention: 16400-series for the primary radiator, 88450-series for the AC condenser, 27060-series for the alternator, 16300-series for the cooling fan assembly, and the hybrid-specific G9200/G92A0/88100/19100/19200 series for the inverter, converter and motor-generators. Indicative references for the most-quoted applications are set out below; the XXXXX placeholders must be cross-checked against the latest Toyota EPC because Toyota splits references by production month, market and engine code.
| Part | Indicative OE Reference | Where to verify |
|---|---|---|
| Radiator assembly (2.0L) | 16400-XXXXX series · confirm by VIN | Cooling OE library |
| Radiator assembly (2.5L Dual Engine) | 16400-XXXXX series · confirm by VIN | Cooling OE library |
| AC condenser | 88450-XXXXX series · confirm by trim | Cooling OE library |
| Cooling fan assembly | 16300-XXXXX series · confirm by engine | Cooling OE library |
| Alternator | 27060-XXXXX series · confirm by engine code | Electrical OE library |
| Starter motor (2.0L petrol) | 28100-XXXXX series · confirm by transmission | Electrical OE library |
| Water pump | 16100-XXXXX series · confirm by engine | Cooling OE library |
| Timing chain kit | 13506-XXXXX series · confirm by engine code | Engine OE library |
| Hybrid inverter | G9200-XXXXX series · confirm by ECU PN | Hybrid system OE library |
| Battery cooling plate | G92A0-XXXXX series · confirm by pack | Hybrid system OE library |
Two cross-reference facts worth memorising. First, the 16400-series radiator splits by engine code (M20A versus M20A-FXS versus the new 2.5L Dynamic Force A25A-FXS) — a 2.0L radiator will not physically fit a 2.5L Dual Engine. Second, the G9200-series inverter carries different part numbers for the 2.0L and 2.5L hybrid systems because the inverter capacity calibration differs, even though the physical housing dimensions may look similar. Verify every reference against the latest Toyota EPC before placing the order.
09 Frequently Asked Questions
What is the Toyota RAV4 2026 radiator wholesale price from China?
Indicative FOB Guangzhou ranges: USD 18-28 for the economical tier (2.0L petrol), USD 32-48 for the OEM-grade tier (2.0L petrol), USD 55-75 for the premium / private-label tier. The hybrid radiator (2.0L and 2.5L Dual Engine) carries a 30-50% premium over the petrol equivalent. MOQs typically start at 50-100 assemblies per reference.
Are RAV4 cooling parts different for the 2WD and 4WD variants?
Yes. The 4WD variants (Dual Engine 4WD Luxury and Flagship) carry an additional intercooler loop on the rear electric drive unit and a triple-zone cooling fan assembly with an additional rear fan. The 2WD variants carry the simpler single-fan architecture. Confirm drive configuration at the parts order stage because the intercooler is not interchangeable between 2WD and 4WD.
What is the FOB Guangzhou price for the RAV4 hybrid inverter?
The OEM-grade tier runs USD 220-380 for the 2.0L THS-II inverter and USD 280-480 for the 2.5L Dual Engine inverter, both FOB Guangzhou. The premium / private-label tier runs USD 500-780. There is essentially no economical aftermarket tier for current-generation RAV4 hybrid inverters because Toyota's supply chain is closely held and independent replacements are restricted to IATF 16949-certified factories.
What certification should I demand from a RAV4 parts supplier?
Ask for four things: the factory's IATF 16949 certificate (verifiable by number at iatfglobaloversight.org), the ISO 9001 certificate, ECE R100 for hybrid high-voltage components (for European-market shipments), and a recent pressure-test / load-test report for the specific part family. For US-bound shipments, add FMVSS compliance confirmation where applicable.
How many RAV4 radiators fit in a 40-foot container?
A 40HC holds roughly 4,000-6,000 radiator assemblies in standard export packaging, depending on whether the shipment is pure radiators (volume-limited) or mixed with condensers, cooling fans and other cooling parts. Inverter shipments are typically lower-volume per container (a few hundred units), so they pair well with radiators and condensers to balance volume and value density.
Do RAV4 2026 parts share with the 2025 or 2024 model year?
Yes, partially. The 2.0L M20A cooling system and engine accessories are largely carryover from 2023-2025 production. The 2.5L Dual Engine hybrid is the new addition for 2026 and carries revised inverter, battery cooling and MG2 references that did not exist in the 2025 programme. A distributor stocking the 2023-2025 RAV4 range can extend into the 2026 programme by adding only the 2.5L-specific hybrid parts.
Data sources: Toyota 2026 RAV4 export specifications and OE reference map; Toyota EPC parts catalogue (latest revision); IATF global oversight database (iatfglobaloversight.org); ECE R100 high-voltage component certification framework; UN 38.3 lithium battery transport requirements; Guangzhou export parts market price assessments, Q3 2026; container loading arithmetic based on standard 40HC export packaging. OE references are indicative and must be confirmed at quote stage.
Source 2026 Toyota RAV4 cooling and engine parts from Globalucar's Guangzhou programme. OEM-grade radiators, condensers, cooling fans, alternators, starters, water pumps, timing chains, plus the hybrid-specific inverter, DC-DC converter, MG1/MG2 motor-generators and battery cooling plate. IATF 16949-certified tier with FOB Guangzhou pricing, mixed-SKU containers and pre-shipment inspection coordination. Contact Mr Didi: ucars@global-ucars.com, WhatsApp +86 133 0240 8528, or send your application list and target volumes through the contact page for a same-week quotation. 28F Guangzhou Jianhua Center, Baiyun District, Guangzhou.
