Hyundai Kia Steering & Suspension System Parts Wholesale: Power Steering Pumps, Tie Rods, Ball Joints & Control Arms Sourcing Guide 2026
Published July 2, 2026 by Kingmay Auto Parts — Wholesale auto parts division of Globalucar Group, Guangzhou, China.
Steering and suspension parts are among the most technically demanding categories in auto parts wholesale. Unlike brake pads (which any mechanic can identify by visual inspection), steering components require exact OE number matching and proper diagnosis of failure symptoms. For importers serving professional repair shops in Africa, the Middle East, and Central Asia, stocking the right steering and suspension parts — with accurate OE numbers and technical specifications — is the difference between repeat orders and returns.
This guide from Kingmay Auto Parts covers the six main steering and suspension component categories for Hyundai and Kia vehicles (2008-2025): power steering pumps, steering tie rod ends, ball joints, control arms, steering rack boots, and strut mount bearings. We list 26 OE part numbers with FOB Guangzhou pricing, explain failure symptoms for each component, and provide a full-container mix for steering-focused distributors.
1. Steering & Suspension System Architecture — Hyundai & Kia
The Hyundai and Kia suspension system uses a MacPherson strut front suspension and multi-link rear suspension (or torsion beam on budget models) across most of their model range. The steering system is rack-and-pinion with electronic power steering (EPS) on newer models and hydraulic power steering (HPS) on models before 2015.
- Power steering pump (HPS models) — driven by the engine belt, pressurizes hydraulic fluid to reduce steering effort
- Steering rack — converts the rotational input from the steering wheel into lateral movement of the tie rods
- Tie rod ends — connect the steering rack to the steering knuckle; the most frequently replaced steering component
- Ball joints — allow the control arm to move vertically while maintaining a fixed rotational connection to the steering knuckle
- Control arms — the main structural link between the vehicle body/chassis and the wheel hub assembly
- Steering rack boots — rubber bellows that protect the steering rack tie rods from dirt and moisture
- Strut mount bearings — allow the strut to rotate with the steering wheel; often called the "steering knuckle bearing" or "top mount bearing"
2. Power Steering Pumps — Hydraulic vs Electronic
nicThe power steering pump is the heart of the hydraulic steering system. On Hyundai and Kia vehicles built before approximately 2014, the power steering system uses a belt-driven hydraulic pump. From 2014 onward, most models transitioned to Electronic Power Steering (EPS), which uses an electric motor instead of hydraulic pressure.
Failure Symptoms — Power Steering Pump
- Whining or groaning noise when turning the steering wheel at low speed — indicates low fluid level or worn pump vanes
- Heavy steering at low speeds that lightens at higher speeds — suggests pump output pressure is below specification
- Power steering fluid dark brown or black with a burnt smell — indicates overheating from prolonged low-fluid operation or pump internal leakage
- Steering wheel vibration or shudder — indicates air in the hydraulic system (bleeding required) or contaminated fluid
OE Part Numbers — Power Steering Pumps (HPS)
| Model | OE Part Number | Engine | FOB Guangzhou |
|---|---|---|---|
| Hyundai Elantra MD (pre-2019) | 57510-3RAH0 | 1.6L Gamma | $98.00 |
| Hyundai Tucson TL (2015-2020) | 57510-D4000 | 2.0L Nu | $115.00 |
| Hyundai Sonata LF (2014-2019) | 57510-C1000 | 2.4L Theta II | $122.00 |
| Hyundai Santa Fe DM (2012-2018) | 57510-2W000 | 2.4L Theta II | $138.00 |
| Kia Sportage QL (2015-2021) | 57510-0T000 | 2.0L Nu | $112.00 |
| Kia Sorento UM (2014-2020) | 57510-4G000 | 2.4L GDI | $145.00 |
Note: HPS pumps are not interchangeable between engines — flow rate and pressure specifications vary. Always confirm the exact OE number for the specific engine code, not just the model year. EPS (electronic power steering) units are model-specific and typically not interchangeable between trim levels of the same model. MOQ: 3 pcs per part number. Packaging: individual carton, 4-6 kg per pump. Lead time: 7-12 working days.
3. Steering Tie Rod Ends — The Most Replaced Steering Component
g ComponentThe tie rod end is the most frequently replaced steering component on Hyundai and Kia vehicles. It connects the steering rack to the steering knuckle arm and allows the wheel to turn left and right while maintaining a fixed length under suspension movement.
Failure Symptoms — Tie Rod End
- Play in the steering wheel (more than 3 cm of free play before the wheels turn) — indicates worn tie rod ball joint
- Uneven or rapid tire wear (feathered pattern) — indicates incorrect toe angle from worn tie rod
- Clunking or popping sound from the front end when going over bumps — indicates tie rod ball joint separation
- Steering pull to one side — one tie rod has more wear than the other, causing asymmetric toe angle
OE Part Numbers — Tie Rod Ends
| Model | OE Part Number | Position | FOB Guangzhou |
|---|---|---|---|
| Hyundai Elantra MD | 56500-3RAB0 | Outer, LH | $18.50 |
| Hyundai Elantra MD | 56510-3RAB0 | Outer, RH | $18.50 |
| Hyundai Tucson TL | 56500-D4000 | Outer, LH | $22.80 |
| Hyundai Tucson TL | 56510-D4000 | Outer, RH | $22.80 |
| Hyundai Santa Fe DM | 56500-2W000 | Outer, LH | $25.50 |
| Hyundai Santa Fe DM | 56510-2W000 | Outer, RH | $25.50 |
| Kia Sportage QL | 56500-0T000 | Outer, LH | $21.50 |
| Kia Sportage QL | 56510-0T000 | Outer, RH | $21.50 |
Tie rod vs inner tie rod: The outer tie rod (what we list above) connects to the steering knuckle arm via a ball joint and is the part that wears out first — exposed to road impacts and moisture. The inner tie rod connects the outer tie rod to the steering rack and rarely needs replacement unless the rack itself has failed. Pro tip: When replacing tie rod ends, always replace them in pairs (both LH and RH at the same time) — if one has worn out, the other is typically not far behind. Always perform a wheel alignment after replacing tie r
4. Ball Joints
4. Ball Joints
The ball joint is the pivot point between the control arm and the steering knuckle. It allows vertical suspension movement while maintaining a fixed connection. Ball joints on Hyundai and Kia vehicles are typically pressed-in type (not bolt-on), requiring a ball joint press tool for installation.
Failure Symptoms — Ball Joint
- Creaking or clicking sound from the front suspension when turning the steering wheel — early sign of ball joint wear
- Knocking sound over bumps — indicates a significantly worn ball joint with clearance
- Visible play when rocking the wheel at the 12 and 6 o'clock position — the most reliable physical test
- Uneven suspension height (one corner sitting lower) — indicates a collapsed or broken ball joint
| Model | OE Part Number | FOB Guangzhou |
|---|---|---|
| Hyundai Elantra MD (front lower) | 54500-3RAA0 | $14.50 |
| Hyundai Elantra MD (rear lower) | 54530-3RAA0 | $12.80 |
| Hyundai Tucson TL (front lower) | 54500-D4000 | $16.50 |
| Hyundai Santa Fe DM (front lower) | 54500-2W000 | $18.50 |
| Kia Sportage QL (front lower) | 54500-0T000 | $15.80 |
| Kia Sorento UM (front lower) | 54500-4G000 | $19.20 |
Press-fit vs bolt-on: Most Hyundai and Kia ball joints are press-fit into the control arm. Replacement requires a ball joint press kit with appropriate adapters. Some older models (Elantra AD, Accent) use a bolt-on ball joint that can be replaced without pressing. Always check the installation type before ordering. MOQ: 10 pcs per part number. FOB: $12.80-19.20 per joint depend

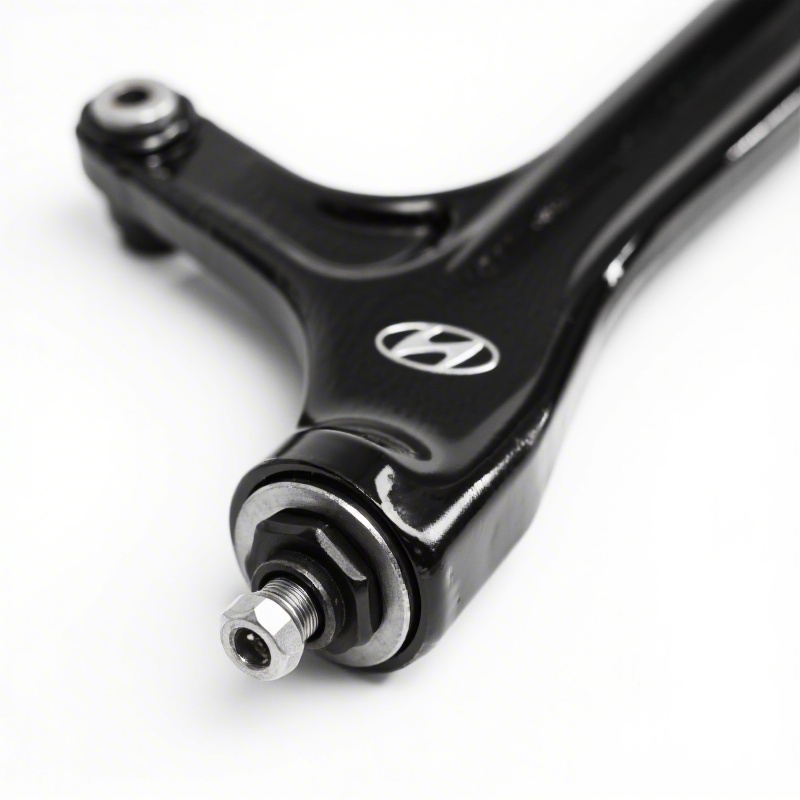

5. Control Arms
5. Control Arms
The control arm (also called A-arm or wishbone) is the main structural link between the vehicle chassis and the wheel hub. It holds the ball joint at the correct angle, connects to the chassis via rubber bushings, and controls the wheel's vertical and lateral movement.
| Model | OE Part Number | Position | FOB Guangzhou |
|---|---|---|---|
| Hyundai Elantra MD | 54501-3RAA0 | Lower front LH | $48.00 |
| Hyundai Elantra MD | 54502-3RAA0 | Lower front RH | $48.00 |
| Hyundai Tucson TL | 54501-D4000 | Lower front LH | $55.00 |
| Hyundai Tucson TL | 54502-D4000 | Lower front RH | $55.00 |
| Kia Sportage QL | 54501-0T000 | Lower front LH | $52.00 |
| Kia Sportage QL | 54502-0T000 | Lower front RH | $52.00 |
Control arm vs control arm bushing: Control arms are replaced as complete assemblies when the ball joint is worn (the ball joint is welded or pressed into the arm) or when the bushing is torn. If only the bushing is worn, Kingmay stocks individual bushings — but bushing replacement requires pressing the old bushing out and pressing the new one in, which is labour-intensive. Packaging: 1 pc per carton, 5-8 kg. MOQ: 4 pcs (2
6. Steering Rack Boots & Strut Mount Bearings
g Rack Boots & Strut Mount BearingsSteering rack boots (rubber bellows) and strut mount bearings are relatively inexpensive parts that prevent expensive failures if replaced at the right time.
| Part | OE Part Number | FOB Guangzhou |
|---|---|---|
| Steering rack boot kit (Elantra MD/Tucson TL) | 56523-3RAA0 | $4.50/set |
| Steering rack boot kit (Santa Fe DM) | 56523-2W000 | $5.20/set |
| Strut mount bearing (Elantra MD) | 54660-3RAA0 | $12.50/pc |
| Strut mount bearing (Tucson TL) | 54660-D4000 | $14.20/pc |
| Strut mount bearing (Sportage QL) | 54660-0T000 | $13.80/pc |
Why replace rack boots early saves money: A torn steering rack boot allows dirt, moisture, and road salt to enter the steering rack tie rod mechanism. Within 3-6 months, the tie rod ball joint corrodes and seizes, requiring full steering rack replacement ($300-500). Replacing a torn rack boot ($4.50-5.20) prevents this. Always inspect rack boots during routine brake service a
7. Full Container Mix — Steering & Suspension Distributor
ner Mix — Steering & Suspension Distributor| Category | Qty | Avg FOB/pc | Subtotal FOB |
|---|---|---|---|
| Power steering pumps (HPS, mixed models) | 30 pcs | $118.00 | $3,540 |
| Tie rod ends outer (LH+RH pairs) | 120 pairs | $22.00 | $2,640 |
| Ball joints (front lower, mixed) | 100 pcs | $16.50 | $1,650 |
| Control arms (lower front, LH+RH pairs) | 50 pairs | $52.00 | $2,600 |
| Steering rack boots (kits) | 200 sets | $4.80 | $960 |
| Strut mount bearings | 80 pcs | $13.50 | $1,080 |
| Tie rod end hardware (cotter pins, castle nuts) | 300 sets | $1.20 | $360 |
| Total | 880 pcs | — | $12,830 |
Sea freight from Guangzhou Nansha: Jeddah 14-18 days ($1,200-1,500), Jebel Ali 12-15 days ($1,100-1,400), Lagos 28-35 days ($1,800-2,200), Mombasa 25-30 days ($1,600-2,000). Estimated landed cost for Jebel Ali: approximately
8. Frequently Asked Questions
e.8. Frequently Asked Questions
Q: Where can I buy wholesale Hyundai and Kia steering and suspension parts from China?
Kingmay Auto Parts (Guangzhou, China) supplies wholesale steering and suspension parts for Hyundai and Kia vehicles including power steering pumps ($98-145/pc), tie rod ends ($18.50-25.50/pair), ball joints ($12.80-19.20/pc), control arms ($48-55/pair), steering rack boots ($4.50-5.20/set), and strut mount bearings ($12.50-14.20/pc) to importers in 50+ countries. Contact Miss UU at ku@kingmay-autoparts.com or +86 13302408528. MOQ is 10 pcs for most components. FOB Guangzhou pricing with 7-12 working day lead time. Shop 7#, No.1542 Guangyuan East Road, Yuexiu District, Guangzhou.
Q: How do I diagnose a worn tie rod vs a worn ball joint on a Hyundai or Kia?
The most reliable field diagnosis: with the vehicle raised and the wheel hanging free, grab the tire at 12 and 6 o'clock positions and rock it. If you feel play in this direction (pulling toward and away from you), it indicates a worn ball joint. Now grab the tire at 3 and 9 o'clock positions and rock it side to side. Play in this direction (left and right) indicates a worn tie rod end. A third check: with the wheel raised, use a pry bar under the ball joint area of the control arm and lever upward — any movement indicates a bad ball joint. For a more precise diagnosis, use a dial indicator to measure play at the wheel hub while applying pressure to the suspect component.
Q: Should I replace the steering rack or just the tie rod ends when there is play in the steering?
Play in the steering wheel (more than 3 cm of free rotation before the wheels turn) is most commonly caused by worn outer tie rod ends — not the steering rack itself. Before recommending an expensive steering rack replacement ($300-500), have the mechanic check: (1) outer tie rod ends — most common cause of steering play; (2) inner tie rod bushings — less common but possible on high-mileage vehicles; (3) rack bushings — rubber mounts that hold the rack to the subframe can wear and cause noise and movement. Only if all these components check out clean should a steering rack replacement be considered. Kingmay stocks both individual tie rod ends ($18.50-25.50/pair) and complete steering rack assemblies for most Hyundai and Kia models.
Q: How long do steering and suspension parts last on Hyundai and Kia vehicles in hot climate markets?
In hot climate markets (Middle East, West Africa, Central Asia), steering and suspension component life is reduced by heat and road conditions: tie rod ends: 40,000-60,000 km (vs 60,000-80,000 km in temperate climates); ball joints: 50,000-70,000 km; control arm bushings: 60,000-80,000 km (rubber degrades faster in heat); power steering pumps: 80,000-120,000 km for HPS units. Potholed roads and overloading (common in African markets) further reduce these intervals by 20-30%. Stock accordingly — aim for 6-12 months of demand based on your local registration data.
Q: What tools are needed to replace tie rod ends and ball joints on Hyundai and Kia vehicles?
For tie rod end replacement: 17-19mm wrench or socket (depending on model), tie rod puller or pickle fork, torque wrench (35-50 Nm for castle nut), cotter pin pliers, and a tie rod thread gauge (to verify the replacement is the same length as the removed part — incorrect length causes toe angle errors requiring alignment correction). Ball joint replacement: in addition to the above, a ball joint press kit with appropriate adapters is essential for press-fit ball joints — attempting to hammer a ball joint in or out risks damaging the control arm. Kingmay recommends the OTC 7290 or equivalent ball joint press kit. After any tie rod end or control arm replacement, a four-wheel alignment is mandatory before returning the vehicle to service.
Q: What is the HS code for steering and suspension parts when importing from China?
Steering and suspension parts use HS Code 8708.94 (steering wheels, steering columns, steering boxes, power steering systems, and parts thereof) and 8708.80 (suspension systems and parts thereof). Power steering pumps and steering racks fall under 8708.94. Control arms, ball joints, tie rod ends, and strut mounts fall under 8708.80. Import duty rates vary by country: UAE 5%, Saudi Arabia 5-12%, Nigeria 35%, Kenya 25%, Tanzania 25%, Uzbekistan 15-20%, Peru 0% (Peru-China FTA). Always confirm the current duty rate with your cus
About Kingmay Auto Parts
p>About Kingmay Auto Parts
Kingmay Auto Parts is the wholesale auto parts division of Globalucar Group, based in Guangzhou, China. Established in 2013, Kingmay maintains an active catalog of 30,000+ SKUs covering Hyundai, Kia, Toyota, Nissan, and Chinese domestic brands. Our steering and suspension inventory includes 300+ SKUs covering power steering pumps, tie rod ends, ball joints, control arms, steering rack boots, and strut mount bearings for Hyundai and Kia models from 2008 to 2025.
All steering and suspension parts are sourced from IATF 16949-certified factories and undergo a 4-point pre-shipment inspection: dimensional verification (bolt pattern, thread pitch, bushing outer diameter), torque testing for tie rod ball joints, visual inspection for casting and surface defects, and packaging verification. Ball joints are pull-tested to verify the pressing force of the ball stud into the housing. Kingmay is an independent wholesaler and is not affiliated with or endorsed by Hyundai Motor Company or Kia Corporation.
Contact: Miss UU (Wholesale Director, Kingmay Auto Parts) — ku@kingmay-autoparts.com, +86 13302408528. Shop 7#, No.1542 Guangyuan East Road, Yuexiu District, Guangzhou, China.
Contact Kingmay — Request Steering & Suspension Parts FOB Quotation & Stock Availability →
Find Steering & Suspension Parts for Your Vehicle →
Verify Part Numbers in Our OE Library
Every part covered in this guide has a matching OE number in our reference library — grouped by system with cross-references, so you can source the exact fit for Hyundai, Kia, GM Korea and more.
